Attach image fieldtype did not show image box under the attach button like image fieldtype

1

Hi all,

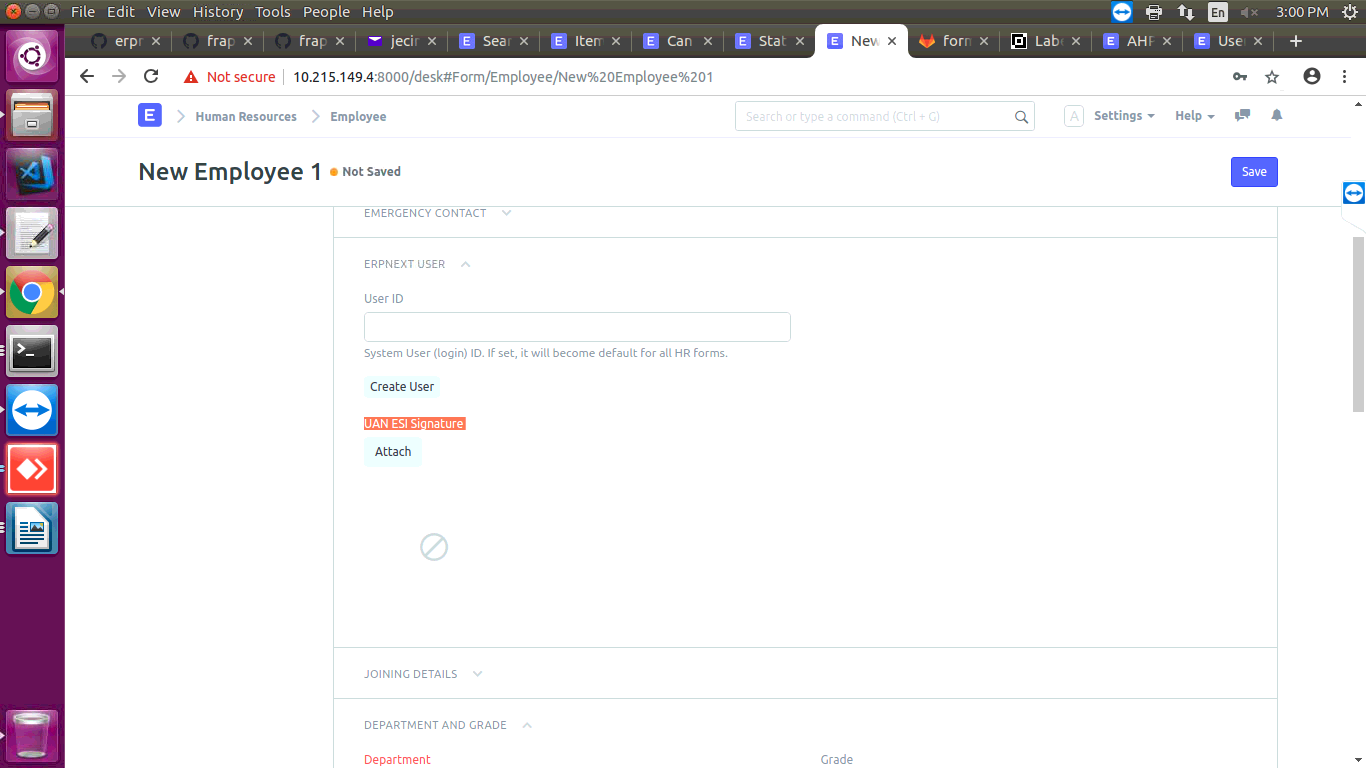

I created one attach image filed in employee here shown attach button but image box not shown under the button

image1366×768 51.6 KB

2

Attach Image field type only working fine our core fields but i created one new field for attach image field type its not work (image not display at the left corner) pls tell me anyone

3

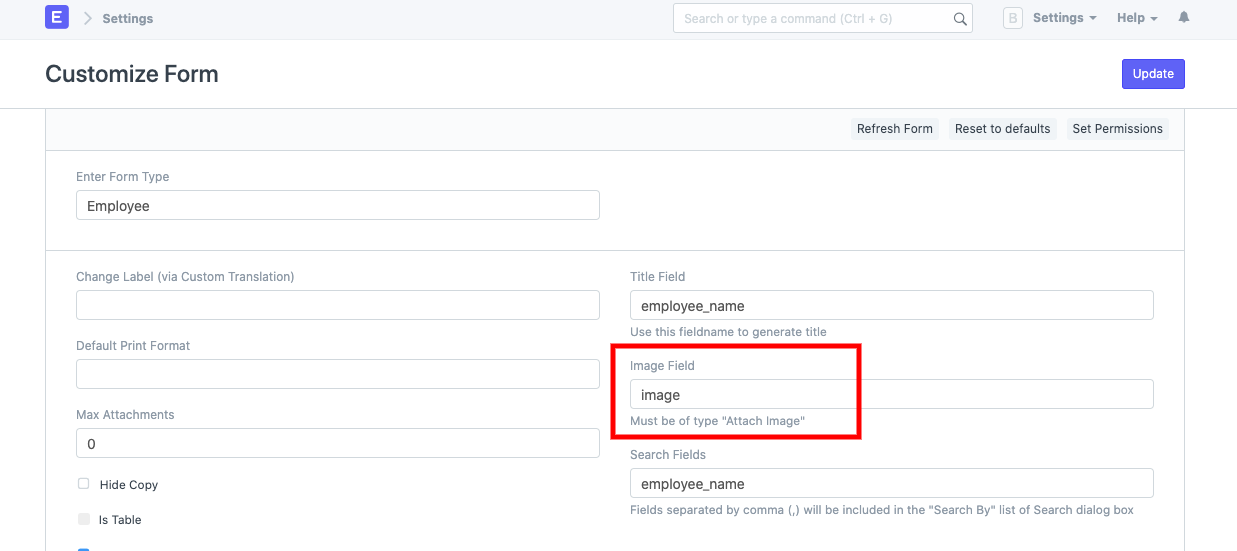

You have to tell the system which is the image field on the basis of which it should populate.

Make sure it is specified under the doctype/customize form option:

image1237×551 37.7 KB

4

Thanks for rly @kennethsequeira

    yeah its working ...I need multiple fields but its not accept multiple option in image field. Can you pls explain
