How we can access vmware from local area network?

ERPNext
1

Hello,

I have problem accessing virtual machine of Erpnext from other system of local area network. How i can do this please help.

2

Share the folder of (Setup of Virual Machine)

Steps:-
1.Start the VM setup
2.check IP address of that machine which you have that VM.
3.then enter IP address of that VM and port no on bowser
For Example:-
192.168.5.23:8080 (here,23 is IP address and 8080 port of VM by default)

Shraddha Ranjane
New Indictrans Technologies Pvt. Ltd

3

login the VM machine with root id (default password is erpnext),
run the command “vi /etc/network/interfaces”,
press “insert” and enter the values according to your network ip address (refer the image),
press “escape” and run :wq,
restart the machine,
Open browser and enter the ip address of vm machine with port number 8080 (In my case:192.168.0.123:8080),

Pasted image1274Ă—730 89.2 KB

4

Thankew

5

c
c616Ă—612 9.63 KB

i have this configuration in my interface, but i dont know how to configure like u @santosh_baburao

6

Kindly refer below lines:

iface enp0s3 inet static
address 192.168.0.143
netmask 255.255.255.0
network 192.168.0.0
gateway 192.168.0.1
broadcast 192.168.0.255
dns-nameservers 192.168.0.3

network, gateway and dns-nameservers vary according to your network

7

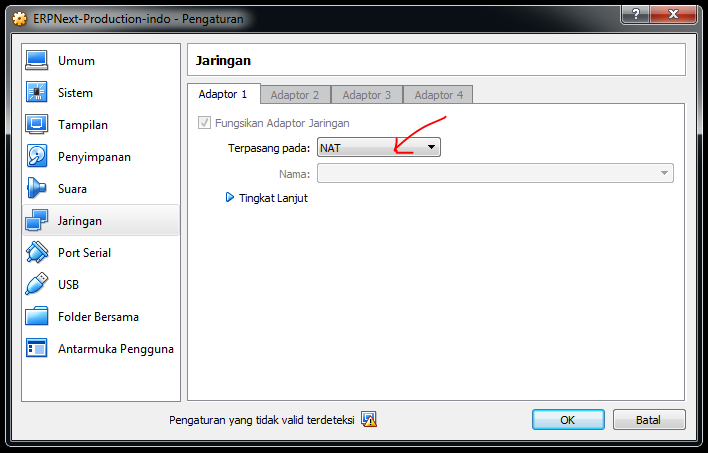

c
c708Ă—453 35.7 KB

im use NAT type, on network adaptor (VM Running)

im read some topic (on forum discuss) we must use brigde type, that is true or not?

@santosh_baburao

8

yes, to access locally it should be bridge mode (for me NAT won’t work).

9

ty @santosh_baburao its solve now,

but, how to solve trusted connection?

c

10

you can add a hosts file entry like so:

127.0.0.1     erp.localhost

Then proceed to access your site from http://erp.localhost [port no. if applicable]

Reference:

1 Like
