I have set up the Press app on DigitalOcean by following a YouTube tutorial step-by-step.
My infrastructure consists of three separate servers designated for the App, Proxy, and Database services. And for DNS management, I am utilizing Cloudflare as my DNS provider.
and I have these issues
You need to use Ruote 53 for dns management. As far as I know, Press doesnot support other dns providers.
Switch your dns provider and try again.
As far as you know @aazaqout … Do you know how Press handles certificates?
If via cerbot, then install certbot’s dns plugin for Cloudflare. I did this somewhere and worked perfectly fine.
If via Traefik, then make sure to say to Traefik to use Cloudflare as it is by default using Route53 which is the default used by Frappe.
Let me know if you need help in more details.
This video
Thank you
I will try the plugin and I’ll let you know if it’s working
I’m using CloudFlare
I will make more investigating about how press handle certification then I’ll decide what to do

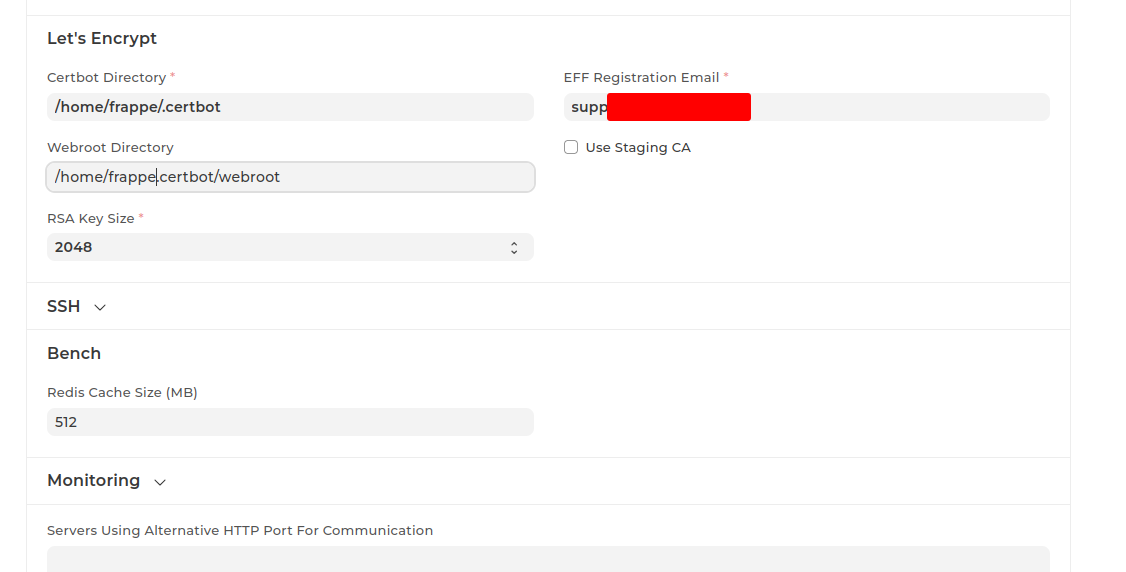

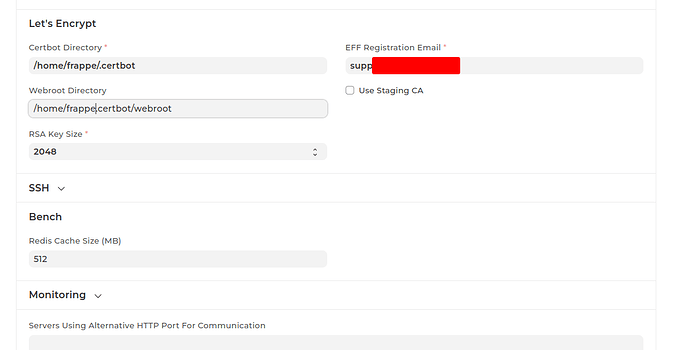

Another issue could be you didnot create .certbot and .webroot folders.
Also you might have forgotten to set the folder routes in press settings.

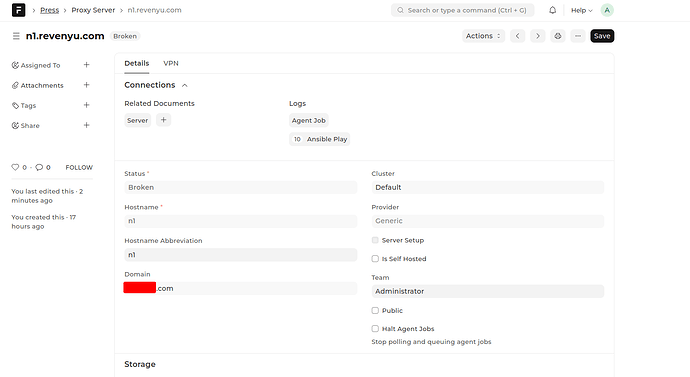

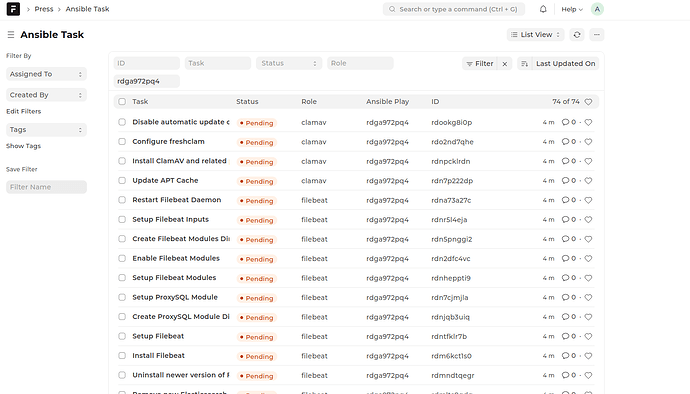

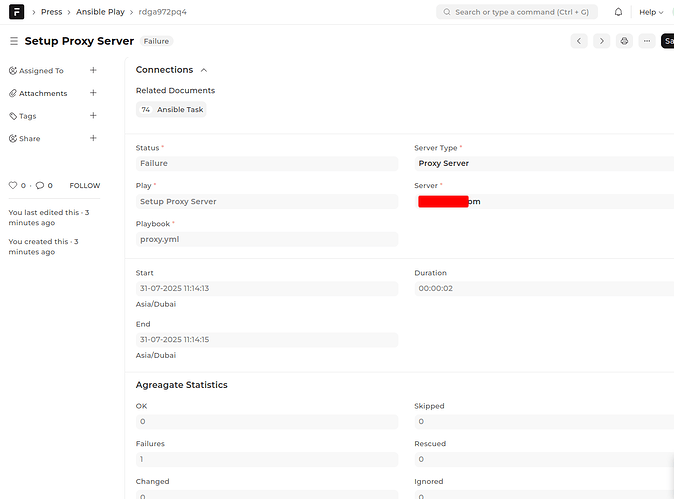

I switched to AWS Route 53 for DNS Provider, but when I setup the proxy, it shows as broken. Are there any specific Nginx server configurations I need to apply before completing the server setup?
There could be many possibilities for broken status. Some of them are:
Hi
May you also please provide some detail on which Ubuntu version you used and size of droplets you selected ?
Although Ubuntu 20 is the officially recommended version, I’ve been running Ubuntu 22 in my setup without any issues it works smoothly and has proven to be stable in production.
I currently have a production environment deployed with the following two clusters and server specifications:
All servers in this setup are part of a single cluster hosted in Finland:
| Server Name | Instance Type | vCPUs | RAM | Disk |
|---|---|---|---|---|
| Press | CCX33 | 8 | 32 GB | 240 GB |
| Registry | CCX13 | 2 | 8 GB | 80 GB |
| Proxy | CCX13 | 2 | 8 GB | 80 GB |
| Log | CCX33 | 8 | 32 GB | 240 GB |
| Monitor | CCX13 | 2 | 8 GB | 80 GB |
| Database | CCX43 | 16 | 64 GB | 360 GB |
| App | CCX33 | 8 | 32 GB | 240 GB |
The Germany cluster is structured as follows:
| Server Name | Instance Type | vCPUs | RAM | Disk Size |
|---|---|---|---|---|
| App2 | CCX43 | 16 | 64 GB | 360 GB + 1024 GB |
| App-server | CCX43 | 16 | 64 GB | 360 GB |
| DB-server | CCX43 | 16 | 64 GB | 360 GB |
| Proxy-server | CCX23 | 4 | 16 GB | 160 GB |
| Monitor-server | CCX23 | 4 | 16 GB | 160 GB |
| Log-server | CCX33 | 8 | 32 GB | 240 GB |
| Registry-server | CCX13 | 2 | 8 GB | 80 GB |
| Press-server | CCX33 | 8 | 32 GB | 240 GB |
Thank you @AWS for this comprehensive answer. May I also ask if you used
Frappe Framework 14 or 15 for the Press server ?
I see you have a full production setup. I think I shall use smaller droplets at first , just to get the principle / procedure right.
I used frappe v.15
Thank you for all the information @AWS
Any help on this design for AWS
Terraform Infrastructure for Frappe Press on AWS
Production-grade, multi-tenant Frappe Press (“Press”) hosting platform infrastructure on AWS using Terraform.
This repository contains Terraform modules and configurations to deploy a complete Frappe Press infrastructure on AWS ECS Fargate, providing:
Multi-tenant architecture with wildcard DNS routing
High availability across multiple availability zones
Production-grade state services: RDS MariaDB, ElastiCache Redis, EFS
Secure by default: Secrets Manager, encrypted storage, private subnets
Auto-scaling capable ECS services with Application Load Balancer
Comprehensive monitoring with CloudWatch
VPC: Custom VPC with public and private subnets across 3 AZs
Networking: Internet Gateway, NAT Gateways, Route Tables
Load Balancing: Application Load Balancer with HTTPS (ACM certificate)
DNS: Route53 with wildcard subdomain support (*.domain.net)
Compute: ECS Fargate cluster with Container Insights
Database: RDS MariaDB Multi-AZ with automated backups
Caching: ElastiCache Redis with automatic failover
Storage: EFS with access points for sites and logs
Security: Security groups, IAM roles, Secrets Manager
press-web: Management interface (mapped to domain.net)
press-worker: Background job processor
press-scheduler: Scheduled task runner
frappe-web: Gunicorn application server (mapped to *.domain.net)
frappe-scheduler: Frappe background scheduler
frappe-queue-short: Short-running background jobs
frappe-queue-long: Long-running background jobs
frappe-websocket: WebSocket server for real-time features
What is it that you are trying to achieve ?
@aazaqout you can check this PR for Cloudflare
Thanks
