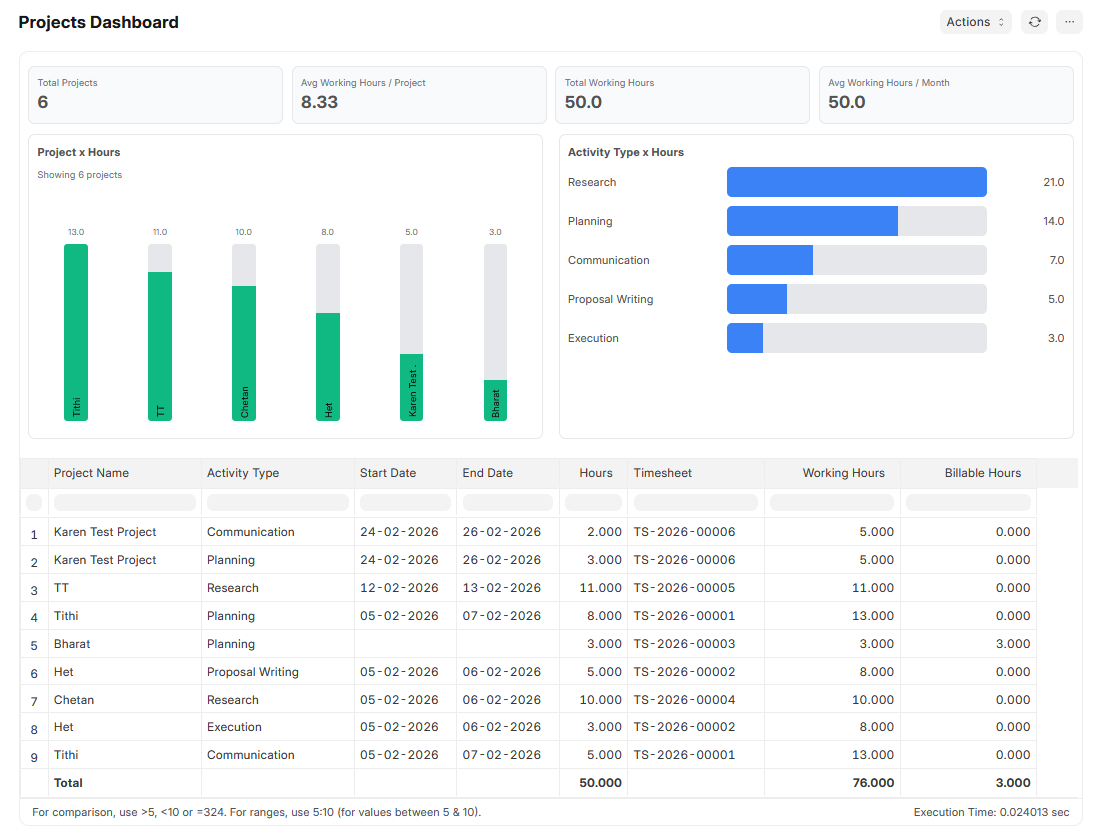

Making a Custom Script Report with graphs (Not with chart object, with html css js)

def execute(filters=None):
filters = filters or {}

# ----------------------------
# Columns
# ----------------------------
columns = [
    {"label": "Project Name", "fieldname": "project_name", "fieldtype": "Data", "width": 180},
    {"label": "Activity Type", "fieldname": "activity_type", "fieldtype": "Link", "options": "Activity Type", "width": 180},
    {"label": "Start Date", "fieldname": "start_date", "fieldtype": "Date", "width": 120},
    {"label": "End Date", "fieldname": "end_date", "fieldtype": "Date", "width": 120},
    {"label": "Hours", "fieldname": "hours", "fieldtype": "Float", "width": 80},
    {"label": "Timesheet", "fieldname": "timesheet", "fieldtype": "Link", "options": "Timesheet", "width": 160},
    {"label": "Working Hours", "fieldname": "total_working_hours", "fieldtype": "Float", "width": 160},
    {"label": "Billable Hours", "fieldname": "total_billable_hours", "fieldtype": "Float", "width": 160},
]

# ----------------------------
# Filters / Conditions
# ----------------------------
conditions = ["ts.docstatus < 2"]
values = {}

if filters.get("projects"):
    p_val = filters.get("projects")
    p_list = [v.strip() for v in p_val.split(",") if v.strip()] if isinstance(p_val, str) else p_val
    if p_list:
        conditions.append("COALESCE(NULLIF(ts.parent_project, ''), tsd.project) IN %(projects)s")
        values["projects"] = tuple(p_list)

if filters.get("activities"):
    a_val = filters.get("activities")
    a_list = [v.strip() for v in a_val.split(",") if v.strip()] if isinstance(a_val, str) else a_val
    if a_list:
        conditions.append("tsd.activity_type IN %(activities)s")
        values["activities"] = tuple(a_list)

if filters.get("employee"):
    conditions.append("ts.employee = %(employee)s")
    values["employee"] = filters.get("employee")

if filters.get("from_date"):
    conditions.append("DATE(tsd.from_time) >= %(from_date)s")
    values["from_date"] = filters.get("from_date")

if filters.get("to_date"):
    conditions.append("DATE(tsd.to_time) <= %(to_date)s")
    values["to_date"] = filters.get("to_date")

where_clause = " AND ".join(conditions)

# ----------------------------
# Data Query
# ----------------------------
sql = """
    SELECT
        COALESCE(NULLIF(ts.parent_project, ''), tsd.project) AS project,
        COALESCE(NULLIF(p.project_name, ''), COALESCE(NULLIF(ts.parent_project, ''), tsd.project)) AS project_name,
        tsd.activity_type AS activity_type,
        COALESCE(p.actual_start_date, p.expected_start_date) AS start_date,
        COALESCE(p.actual_end_date, p.expected_end_date) AS end_date,
        tsd.hours AS hours,
        COALESCE(tsd.billing_hours, 0) AS billable_hours,
        ts.name AS timesheet,
        tsd.from_time AS work_date
    FROM `tabTimesheet` ts
    INNER JOIN `tabTimesheet Detail` tsd
        ON tsd.parent = ts.name
    LEFT JOIN `tabProject` p
        ON p.name = COALESCE(NULLIF(ts.parent_project, ''), tsd.project)
    WHERE %s
    ORDER BY tsd.from_time DESC
    LIMIT 500
""" % where_clause

data = frappe.db.sql(sql, values, as_dict=True)

# ----------------------------
# Aggregations (NO +=)
# ----------------------------
project_totals = {}
project_billable_totals = {}
activity_totals = {}
month_totals = {}
total_hours = 0.0

for r in data:
    p = r.get("project_name") or r.get("project") or "Not Set"
    a = r.get("activity_type") or "Not Set"

    h_raw = r.get("hours")
    h = float(h_raw) if h_raw else 0.0
    b_raw = r.get("billable_hours")
    b = float(b_raw) if b_raw else 0.0

    total_hours = total_hours + h

    project_totals[p] = float(project_totals.get(p, 0.0)) + h
    project_billable_totals[p] = float(project_billable_totals.get(p, 0.0)) + b
    activity_totals[a] = float(activity_totals.get(a, 0.0)) + h

    wd = r.get("work_date")
    if wd:
        wd_str = str(wd)
        month_key = wd_str[:7]
        month_totals[month_key] = float(month_totals.get(month_key, 0.0)) + h

for r in data:
    p = r.get("project_name") or r.get("project") or "Not Set"
    r["total_working_hours"] = round(float(project_totals.get(p, 0.0)), 2)
    r["total_billable_hours"] = round(float(project_billable_totals.get(p, 0.0)), 2)

# ----------------------------
# Chart (Project-wise bar)
# ----------------------------
proj_pairs = sorted(project_totals.items(), key=lambda x: float(x[1] or 0.0), reverse=True)

proj_labels = []
proj_values = []

# top 20
i = 0
for item in proj_pairs:
    if i >= 20:
        break
    proj_labels.append(item[0])
    proj_values.append(round(float(item[1] or 0.0), 2))
    i = i + 1

chart = None

# ----------------------------
# Activity Type x Hours (message chart for Python-only report script)
# ----------------------------
act_pairs = sorted(activity_totals.items(), key=lambda x: float(x[1] or 0.0), reverse=True)
act_top = act_pairs[:10]
act_max = float(act_top[0][1]) if act_top else 0.0

activity_lines = []
for name, val in act_top:
    h_val = round(float(val or 0.0), 2)
    pct = int((float(val or 0.0) / act_max) * 100) if act_max > 0 else 0
    activity_lines.append(
        "<div style='display:flex;align-items:center;gap:8px;'>"
        "<div style='width:180px;overflow:hidden;text-overflow:ellipsis;white-space:nowrap;'>%s</div>"
        "<div style='flex:1;background:#e5e7eb;height:36px;border-radius:6px;overflow:hidden;'>"
        "<div style='height:36px;background:#3b82f6;width:%s%%;'></div>"
        "</div>"
        "<div style='width:84px;text-align:right;'>%s</div>"
        "</div>"
        % (name or "Not Set", pct, h_val)
    )

project_limit = filters.get("project_limit")
if project_limit:
    try:
        project_limit = int(project_limit)
    except Exception:
        project_limit = 0
else:
    project_limit = 0
if project_limit > 0:
    proj_top = proj_pairs[:project_limit]
else:
    proj_top = proj_pairs
proj_count = len(proj_top)
proj_max = max([float(x[1] or 0.0) for x in proj_top], default=0.0)
project_bars = []
for name, val in proj_top:
    v = round(float(val or 0.0), 2)
    pct = int((float(val or 0.0) / proj_max) * 100) if proj_max > 0 else 0
    label_txt = (name or "Not Set")
    if len(label_txt) > 12:
        label_txt = label_txt[:11] + "."
    project_bars.append(
        "<div style='display:flex;flex-direction:column;align-items:center;gap:6px;'>"
        "<div style='font-size:10px;color:#6b7280;'>%s</div>"
        "<div style='height:210px;width:28px;background:#e5e7eb;border-radius:4px;position:relative;overflow:hidden;'>"
        "<div style='position:absolute;left:0;right:0;bottom:0;background:#10b981;height:%s%%;'></div>"
        "<div title='%s' style='position:absolute;left:50%%;bottom:4px;transform:translateX(-50%%) rotate(180deg);"
        "writing-mode:vertical-rl;font-size:11px;line-height:11px;color:#111111;"
        "white-space:nowrap;max-height:196px;overflow:hidden;'>%s</div>"
        "</div>"
        "</div>"
        % (v, pct, name or "Not Set", label_txt)
    )

project_chart_html = (
    "<div style='height:280px;display:grid;grid-template-columns:repeat(%s, minmax(22px, 1fr));"
    "column-gap:8px;align-items:end;overflow-x:auto;padding-bottom:2px;'>%s</div>"
    % (proj_count if proj_count > 0 else 1, "".join(project_bars) or "<div>No project data.</div>")
)

# ----------------------------
# Summary + message
# ----------------------------
total_projects = len(list(project_totals.keys()))
total_months = len(list(month_totals.keys()))
avg_hours_per_project = (total_hours / float(total_projects)) if total_projects > 0 else 0.0
avg_hours_per_month = (total_hours / float(total_months)) if total_months > 0 else 0.0

report_summary = None

message = (
    "<div style='display:grid;grid-template-columns:repeat(4, minmax(180px, 1fr));gap:10px;margin:8px 0 12px 0;'>"
    "<div style='border:1px solid #e5e7eb;border-radius:8px;padding:10px;background:#f9fafb;'><div style='font-size:11px;color:#6b7280;'>Total Projects</div><div style='font-size:20px;font-weight:700;'>%s</div></div>"
    "<div style='border:1px solid #e5e7eb;border-radius:8px;padding:10px;background:#f9fafb;'><div style='font-size:11px;color:#6b7280;'>Avg Working Hours / Project</div><div style='font-size:20px;font-weight:700;'>%s</div></div>"
    "<div style='border:1px solid #e5e7eb;border-radius:8px;padding:10px;background:#f9fafb;'><div style='font-size:11px;color:#6b7280;'>Total Working Hours</div><div style='font-size:20px;font-weight:700;'>%s</div></div>"
    "<div style='border:1px solid #e5e7eb;border-radius:8px;padding:10px;background:#f9fafb;'><div style='font-size:11px;color:#6b7280;'>Avg Working Hours / Month</div><div style='font-size:20px;font-weight:700;'>%s</div></div>"
    "</div>"
    "<div style='display:flex;gap:18px;align-items:stretch;flex-wrap:wrap;margin-top:4px;'>"
    "<div style='flex:1;min-width:340px;height:360px;border:1px solid #e5e7eb;border-radius:8px;padding:10px;display:flex;flex-direction:column;'>"
    "<div style='margin-bottom:8px;'><b>Project x Hours</b></div>"
    "<div style='font-size:11px;color:#6b7280;margin-bottom:6px;'>Showing %s projects%s</div>"
    "%s"
    "</div>"
    "<div style='flex:1;min-width:340px;height:360px;border:1px solid #e5e7eb;border-radius:8px;padding:10px;display:flex;flex-direction:column;'>"
    "<div style='margin-bottom:8px;'><b>Activity Type x Hours</b></div>"
    "<div style='height:280px;overflow-y:auto;display:flex;flex-direction:column;gap:10px;'>%s</div>"
    "</div>"
    "</div>"
    % (
        total_projects,
        round(float(avg_hours_per_project), 2),
        round(float(total_hours), 2),
        round(float(avg_hours_per_month), 2),
        proj_count,
        (" (filtered from total " + str(total_projects) + ")" if project_limit > 0 else ""),
        project_chart_html,
        "".join(activity_lines) or "<div>No activity data.</div>",
    )
)

return columns, data, message, chart, report_summary

data = execute()
