Understanding before_workflow_action in Frappe

In Frappe Workflow, whenever you click Approve, Reject, or any workflow button, Frappe gives us a special hook called before_workflow_action.

This hook runs just before Frappe sends your workflow action to the server.

Think of it like a security guard standing at the gate, checking if everything is correct before allowing the action to proceed.

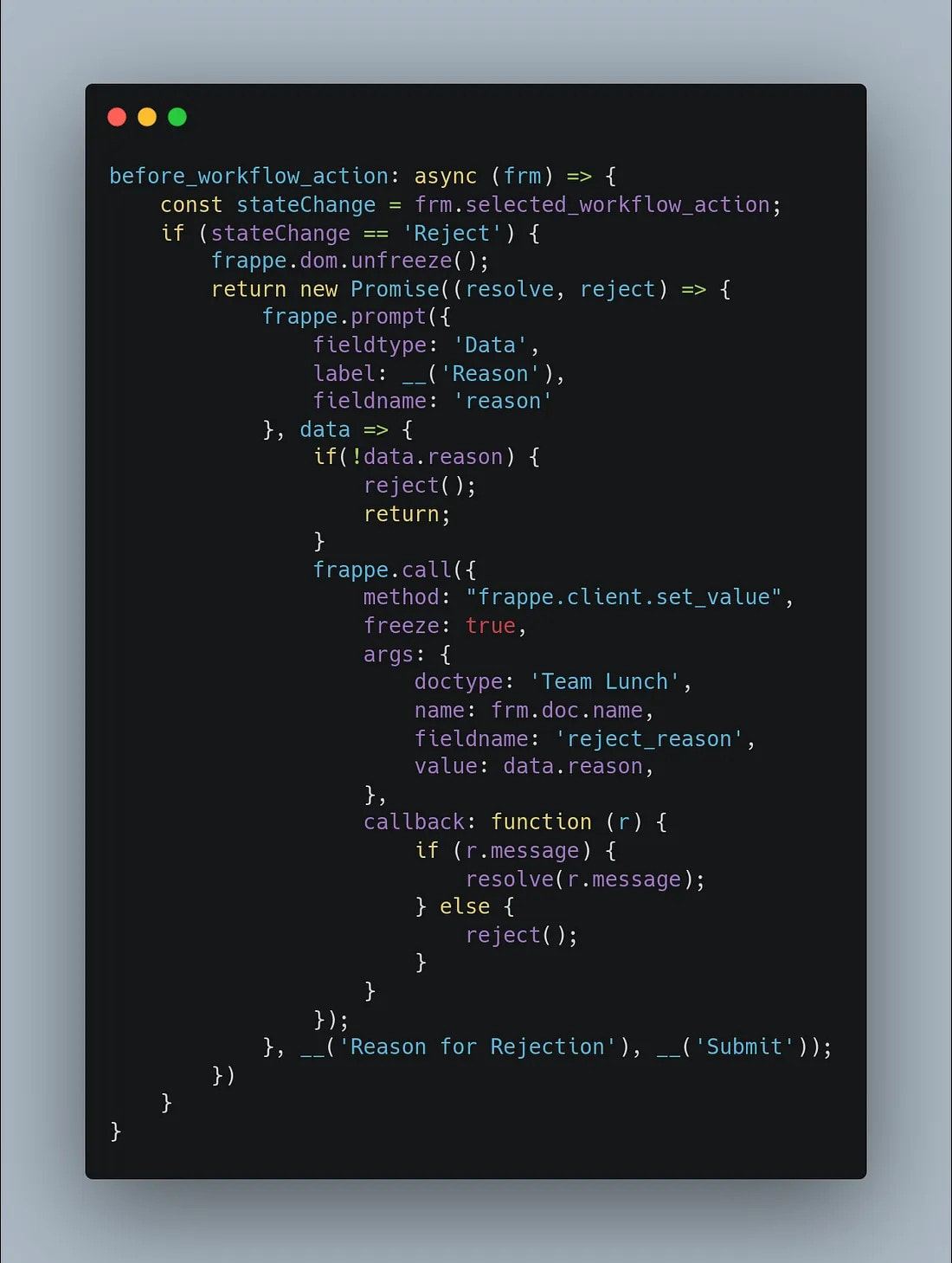

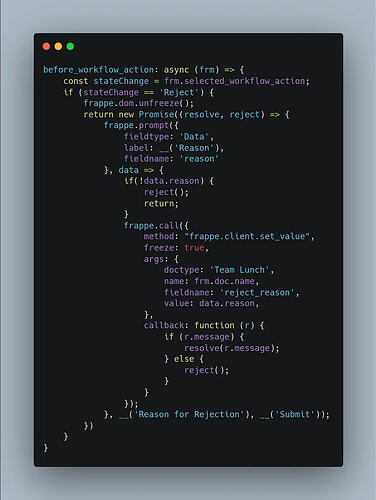

image1100Ă—1459 165 KB

What Actually Happens Internally?

When you click a workflow button:

  1. Frappe freezes the screen (to avoid double-clicks).
  2. Frappe stores the button name in frm.selected_workflow_action
    (Ex: “Approve” / “Reject”).
  3. Frappe runs your before_workflow_action script.
  4. If your script says OK, then the server workflow is applied.
  5. If your script says STOP, the workflow does not continue.
  6. After the server finishes, after_workflow_action runs.

So your hook is the last checkpoint before Frappe commits the workflow.

Why do we even need before_workflow_action?

Use it when you want to:

  • Validate user input before allowing workflow
  • Ask for confirmation (Yes/No)
  • Ask for extra information (like “Rejection reason”)
  • Stop workflow if something is not correct
  • Run asynchronous operations like API calls

The Most Important Concept: It Can Be Asynchronous

This hook supports async code.

Which means you can:

  • show dialogs
  • wait for user input
  • call APIs
  • run background logic

And only AFTER all that, allow or stop the workflow.

That’s why we return a Promise.

Why Do We Return a Promise?

Because Frappe must wait for your operation.

Example:

If you ask the user: “Please enter rejection reason”

The workflow must pause until user submits the dialog.

JavaScript normally does not wait.
So we return a Promise to tell Frappe:

“Don’t continue the workflow. Wait until I resolve this promise.”

resolve() Means: “Everything is OK, continue workflow.”

reject() or frappe.validated = false Means: “Stop the workflow, do NOT proceed.”

Without Promise → Frappe proceeds instantly → dialog won’t work.

Why Do We Use frappe.dom.unfreeze()?

When workflow buttons are clicked, Frappe automatically freezes the UI.

This is done before your hook runs.

But if you show a dialog (prompt/confirm), the freeze prevents clicking inside the dialog. So user cannot type or click “OK”.

Therefore: frappe.dom.unfreeze()

  • removes the freeze
  • allows user interaction with the prompt
  • after workflow completes, Frappe automatically freezes/unfreezes again

So you must unfreeze only when you’re showing a custom dialog.

Example:

before_workflow_action: async (frm) => {
    // Get the workflow action the user clicked
    const action = frm.selected_workflow_action;

    // Check if this action needs custom handling
    if (action === '<Your_Action_Name>') {

        // Unfreeze UI (Frappe freezes it automatically)
        frappe.dom.unfreeze();

        return new Promise((resolve, reject) => {

            // Show a custom prompt to the user
            frappe.prompt(
                {
                    fieldtype: '<Field_Type>',
                    label: '<Your_Label>',
                    fieldname: 'input_value',
                    reqd: 1
                },

                async (data) => {
                    // Basic validation example
                    if (!data.input_value) {
                        frappe.msgprint('Input is required.');
                        reject();   // Stop workflow
                        return;
                    }

                    // Optional: Save something or run async logic
                    await frappe.call({
                        method: '<your.server.method or frappe.client.set_value>',
                        args: {
                            doctype: '<Your DocType>',
                            name: frm.doc.name,
                            fieldname: '<target_field>',
                            value: data.input_value
                        },
                        freeze: true
                    });

                    resolve();   // Allow workflow to continue
                },

                // Prompt title
                __('<Dialog Title>')
            );
        });
    }
};

Key Takeaways

Concept Meaning
before_workflow_action Runs before workflow is submitted
frm.selected_workflow_action Which workflow button user clicked
frappe.validated = false Stop workflow synchronously
return Promise Stop workflow asynchronously
resolve() Workflow continues
reject() Workflow stops
frappe.dom.unfreeze() Required when showing any dialog inside this hook
