Understanding Frappe’s Encryption Key: Data Security, Backups, and Migration

Frappe Framework
1

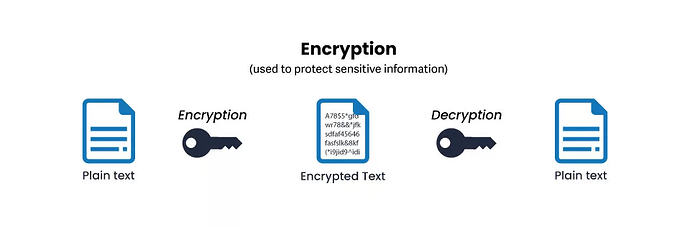

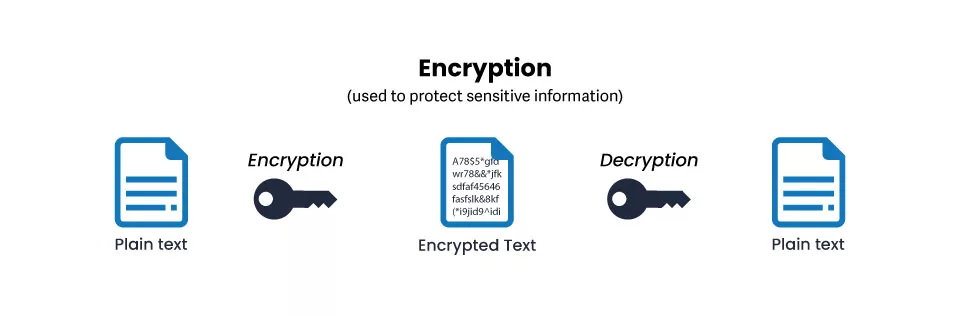

Frappe Encryption Key System (secure sensitive information NOT User Passwords)

image960×316 53.8 KB

Overview

The encryption_key in Frappe is a 32-character base64-encoded key that serves as the master key for encrypting and decrypting sensitive data. It’s stored in site_config.json and is essential for:

  • Data Protection:
    • Encrypting sensitive information like API keys and service credentials
    • Frappe uses the encryption_key to protect sensitive values stored in the database.
    • These are not hashed (like login passwords) but encrypted because the system needs to decrypt and use them later (e.g., connect to email servers, payment gateways, APIs).

    This ensures that if someone gains database access, they cannot read API secrets without also having the site’s encryption_key.

  • Backup Security: Encrypting backup files.

    • Database and file backups may contain sensitive information (emails, service credentials, tokens, financial data).

    • Frappe lets you encrypt backups using the same site-level encryption_key.

    • Scenario

      • With key: Admin restores backup and all data (including API secrets, email passwords) is intact.
      • Without key: Admin restores backup, but Frappe throws “Encryption key is invalid!” errors when trying to read sensitive values.

      This prevents attackers from downloading backups and using your sensitive information.

  • Data Integrity: Ensuring encrypted data can only be accessed with the correct key.

    • Frappe uses Fernet encryption (AES + HMAC). This not only encrypts the data but also ensures that the data cannot be modified or decrypted with the wrong key.

      • If the wrong key is used, decryption fails with an InvalidToken error.
      • If the data is tampered (e.g., attacker edits the ciphertext), the integrity check fails, and the system rejects it.

    • This Prevents silent corruption: You’ll know immediately if the ciphertext or key is wrong.

    • and Prevents brute-force decryption: Attackers can’t just guess keys and get meaningful results, because Fernet enforces integrity checks.

      This guarantees that only the correct site key can unlock your sensitive data.

Key Characteristics

  • Length: 32 characters (base64-encoded)

The key is not exactly “32 characters” in the sense of raw text length. It’s a 32-byte key that gets base64-encoded, resulting in a 44-character string (e.g., B2lCdnY…=).

  • Format: Generated using Fernet.generate_key().decode()
  • Location: Stored in sites/{site_name}/site_config.json
  • Algorithm: Uses Fernet (AES-128 in CBC mode with PKCS7 padding)

How Encryption Key Works

1. Key Generation

# When a new site is created, Frappe automatically generates an encryption key
from cryptography.fernet import Fernet

def get_encryption_key():
    if "encryption_key" not in frappe.local.conf:
        encryption_key = Fernet.generate_key().decode()  # 32-char base64
        update_site_config("encryption_key", encryption_key)
        frappe.local.conf.encryption_key = encryption_key

    return frappe.local.conf.encryption_key

2. Encryption Process

def encrypt(txt, encryption_key=None):
    # Uses Fernet (AES-128) for encryption
    cipher_suite = Fernet(encode(encryption_key or get_encryption_key()))
    return cstr(cipher_suite.encrypt(encode(txt)))

3. Decryption Process

def decrypt(txt, encryption_key=None, key=None):
    try:
        cipher_suite = Fernet(encode(encryption_key or get_encryption_key()))
        return cstr(cipher_suite.decrypt(encode(txt)))
    except InvalidToken:
        # Key mismatch - data cannot be decrypted
        frappe.throw("Encryption key is invalid!")

What Gets Encrypted

1. API Keys and Secrets

# API secrets stored in __Auth table with encrypted=1
api_secret = get_decrypted_password("User", "admin", "api_secret")

2. Service Credentials

# Email passwords, payment gateway keys, etc.
email_password = get_decrypted_password("Email Account", "gmail", "password")

3. Backup Files

# Encrypted backups use the same key
if frappe.get_system_settings("encrypt_backup"):
    backup_encryption_key = get_or_generate_backup_encryption_key()

4. Custom Encrypted Data

# Any data that needs to be retrieved later
encrypted_data = encrypt("sensitive_information", get_encryption_key())
decrypted_data = decrypt(encrypted_data, get_encryption_key())

Password Fields vs Encryption

Important Distinction

Aspect User Passwords Encrypted Passwords
Storage Method Hashed (bcrypt/pbkdf2) Encrypted (AES)
Retrieval Cannot be retrieved Can be decrypted
Purpose Authentication only Service connections
Table __Auth with encrypted=0 __Auth with encrypted=1
Uses encryption_key No Yes

not all fields marked as “Password” in DocTypes are encrypted by default. Developers must explicitly use set_encrypted_password() or mark fields with fieldtype = “Password” and encrypt=1.

User Passwords (Hashed)

# User login passwords are HASHED, not encrypted
def update_password(user, pwd):
    hashPwd = passlibctx.hash(pwd)  # bcrypt/pbkdf2
    # Stored in __Auth with encrypted=0
    query.insert(doctype, user, "password", hashPwd, 0)

Service Passwords (Encrypted)

# Service passwords are ENCRYPTED for retrieval
def set_encrypted_password(doctype, name, pwd):
    encrypted_pwd = encrypt(pwd)  # Uses encryption_key
    # Stored in __Auth with encrypted=1
    query.insert(doctype, name, "password", encrypted_pwd, 1)

Database Storage

__Auth Table Structure

CREATE TABLE `__Auth` (
    `doctype` VARCHAR(140) NOT NULL,
    `name` VARCHAR(255) NOT NULL,
    `fieldname` VARCHAR(140) NOT NULL,
    `password` TEXT NOT NULL,
    `encrypted` INT(1) NOT NULL DEFAULT 0,
    PRIMARY KEY (`doctype`, `name`, `fieldname`)
);

How Data is Stored

Hashed Passwords (encrypted=0)

-- User passwords (hashed, not encrypted)
INSERT INTO __Auth VALUES ('User', 'admin', 'password', 'pbkdf2:sha256:600000$salt$hash', 0);

Encrypted Passwords (encrypted=1)

-- Service passwords (encrypted)
INSERT INTO __Auth VALUES ('Email Account', 'gmail', 'password', 'gAAAAABk...encrypted_data...', 1);

Retrieval Logic

def get_decrypted_password(doctype, name, fieldname="password"):
    # Only retrieves encrypted passwords (encrypted=1)
    result = frappe.qb.from_(Auth).select(Auth.password).where(
        (Auth.doctype == doctype) &
        (Auth.name == name) &
        (Auth.fieldname == fieldname) &
        (Auth.encrypted == 1)  # Only encrypted data
    ).run()

    if result:
        return decrypt(result[0][0], key=f"{doctype}.{name}.{fieldname}")

Site Configuration

site_config.json Structure

{
  "db_name": "_05sgddsfsmdfmkj8",
  "db_password": "bkhfbvjhbdfhjdfkhbv",
  "db_type": "mariadb",
  "encryption_key": "bhbhjhjdfjhjfbvjhfvbkfdsbkbsbdfhksbkbd=",
}

Key Components

  • encryption_key: Master key for encryption/decryption
  • db_password: Database password (not encrypted)

Backup and Migration

What “Migration” Means in Frappe?

When we say migration in Frappe/ERPNext, we usually mean:

  • Moving a site from one server to another
  • Restoring from a backup (bench restore)

During migration, Frappe tries to read encrypted data (API keys, email passwords, payment gateway credentials, etc.) from the database.

Critical Importance for Migration

When migrating a Frappe site, the encryption_key is absolutely critical:

What Happens Without the Key

# If encryption_key is missing or changed:
try:
    decrypted_data = decrypt(encrypted_data, new_encryption_key)
except InvalidToken:
    frappe.throw(
        "Encryption key is invalid! Please check site_config.json\n"
        "If you have recently restored the site you may need to copy the site config containing original Encryption Key."
    )

Migration Scenarios

Successful Migration

# 1. Backup with original encryption_key
bench --site old-site backup

# 2. Copy site_config.json with original encryption_key
cp sites/old-site/site_config.json sites/new-site/

# 3. Restore with same encryption_key
bench --site new-site restore backup.sql

Failed Migration (Lost Key)

# 1. Backup with original encryption_key
bench --site old-site backup

# 2. Create new site (generates new encryption_key)
bench new-site new-site

# 3. Restore fails - cannot decrypt data
bench --site new-site restore backup.sql
# Error: Encryption key is invalid!

Backup Encryption

# Frappe can encrypt backup files using the same key
if frappe.get_system_settings("encrypt_backup"):
    backup_encryption_key = get_or_generate_backup_encryption_key()
    # Uses the same encryption_key from site_config.json

Why Migration Fails Without the Original Key?

All encrypted values in the database are tied to the original encryption_key stored in site_config.json.
If that key is missing or replaced, Frappe can no longer decrypt them.

What That Means in Practice:

  • The migration itself (DB restore) succeeds: tables, data, and files are restored.But whenever you try to use encrypted values, Frappe breaks. Examples:
    • Sending an email (needs stored password) → error.
    • Calling an external API (needs API secret) → error.
    • Using payment gateway (needs merchant key) → error.

So the site may “look migrated,” but critical functionality fails.

When the Encryption Key Matters?

The encryption_key is only required at runtime when Frappe needs to decrypt and use data stored with encrypted=1 in the __Auth table (or backups).

Examples:

  • Sending an email → needs to decrypt stored SMTP password.
  • Using an API integration → needs to decrypt API secret.
  • Restoring an encrypted backup → needs the original key.

If the key is wrong, these actions fail with InvalidToken: Encryption key is invalid!.

Does bench migrate relate to Site Migration?

No.
bench migrate only applies database schema changes and runs patches.
It does not validate encrypted values in your database.

  • bench migrate will succeed even if the encryption key is missing or incorrect.
  • Problems occur later at runtime, when the system tries to use encrypted values (e.g., email passwords, API secrets, backups).
  • Without the original encryption_key, these operations will fail with an “Encryption key is invalid!” error.

So while bench migrate itself doesn’t fail, your site functionality becomes partially broken if the original key is missing.

Common Issues

1. “Encryption key is invalid!” Error

# Cause: encryption_key changed or missing
# Solution: Restore original site_config.json
cp backup/site_config.json sites/your-site/site_config.json

2. Backup Restoration Fails

# Cause: Backup encrypted with different key
# Solution: Provide correct encryption_key
bench --site new-site restore backup.sql --encryption-key "original_key"

Recovery Procedures

Lost Encryption Key

# If encryption_key is lost, encrypted data cannot be recovered
# Only option: Re-create encrypted data
# User passwords (hashed) are still accessible

Corrupted site_config.json

# Restore from backup
cp backup/site_config.json sites/your-site/site_config.json

Summary

The encryption_key in Frappe is a critical security component that:

  1. Encrypts sensitive data that needs to be retrieved later
  2. Protects backup files from unauthorized access
  3. Must be preserved during site migrations
  4. Cannot be recovered if lost
  5. Is different from password hashing (which doesn’t use encryption)

Key Takeaways

  • Always backup site_config.json with your database
  • Never change encryption_key without proper migration procedures
  • User passwords are hashed, not encrypted (don’t use encryption_key)
  • Service credentials are encrypted (use encryption_key)
  • Migration requires the original encryption_key

Critical Commands

# Backup with encryption
bench --site your-site backup --with-files

# Restore with encryption key
bench --site new-site restore backup.sql --encryption-key "original_key"

# Check encryption status
bench --site your-site get-config encryption_key

Remember: The encryption_key is the master key to your encrypted data. Protect it like you would protect your most valuable asset

Think of encryption_key as the master key to a safe:

  • You moved the safe (database) to a new house (server).
  • If you don’t bring the original key, the safe (encrypted data) is still there — but useless.
